一.前言
1.1 简介
GitLab 是一个用于仓库管理系统的开源项目，使用Git作为代码管理工具，并在此基础上搭建起来的Web服务。安装方法是参考GitLab在GitHub上的Wiki页面。
二.部署
2.1 创建持久化目录
mkdir /data/{gitlab_etc,gitlab_log,gitlab_opt,gitlab_postgresql_data}
2.2 创建命名空间
kubectl create namespace gitlab
2.3 配置postgresql和redis
postgresql 配置
# pv
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: gitlab-postgresql-data
labels:
type: gitlab-postgresql-data
spec:
capacity:
storage: 10Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
storageClassName: nfs
nfs:
path: /data/gitlab_postgresql_data
server: 10.46.8.18
# pvc
---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: gitlab-postgresql-data-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 10Gi
storageClassName: nfs
selector:
matchLabels:
type: gitlab-postgresql-data
---
apiVersion: v1
kind: Service
metadata:
name: postgresql
labels:
app: gitlab
tier: postgreSQL
spec:
ports:
- port: 5432
selector:
app: gitlab
tier: postgreSQL
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: postgresql
labels:
app: gitlab
tier: postgreSQL
spec:
replicas: 1
selector:
matchLabels:
app: gitlab
tier: postgreSQL
strategy:
type: Recreate
template:
metadata:
labels:
app: gitlab
tier: postgreSQL
spec:
containers:
- image: postgres:12.6-alpine
name: postgresql
env:
- name: POSTGRES_USER
value: gitlab
- name: POSTGRES_DB
value: gitlabhq_production
- name: POSTGRES_PASSWORD
value: bogeusepg
- name: TZ
value: Asia/Shanghai
ports:
- containerPort: 5432
name: postgresql
livenessProbe:
exec:
command:
- sh
- -c
- exec pg_isready -U gitlab -h 127.0.0.1 -p 5432 -d gitlabhq_production
initialDelaySeconds: 110
timeoutSeconds: 5
failureThreshold: 6
readinessProbe:
exec:
command:
- sh
- -c
- exec pg_isready -U gitlab -h 127.0.0.1 -p 5432 -d gitlabhq_production
initialDelaySeconds: 20
timeoutSeconds: 3
periodSeconds: 5
resources:
requests:
cpu: 100m
memory: 512Mi
limits:
cpu: "1"
memory: 1Gi
volumeMounts:
- name: postgresql
mountPath: /var/lib/postgresql/data
volumes:
- name: postgresql
persistentVolumeClaim:
claimName: gitlab-postgresql-data-pvc
redis 配置
---
apiVersion: v1
kind: Service
metadata:
name: redis
labels:
app: gitlab
tier: backend
spec:
ports:
- port: 6379
targetPort: 6379
selector:
app: gitlab
tier: backend
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: redis
labels:
app: gitlab
tier: backend
spec:
replicas: 1
selector:
matchLabels:
app: gitlab
tier: backend
strategy:
type: Recreate
template:
metadata:
labels:
app: gitlab
tier: backend
spec:
containers:
- image: redis:6.2.0-alpine3.13
name: redis
command:
- "redis-server"
args:
- "--requirepass"
- "bogeuseredis"
# resources:
# requests:
# cpu: "1"
# memory: 2Gi
# limits:
# cpu: "1"
# memory: 2Gi
ports:
- containerPort: 6379
name: redis
livenessProbe:
exec:
command:
- sh
- -c
- "redis-cli ping"
initialDelaySeconds: 30
periodSeconds: 10
timeoutSeconds: 5
successThreshold: 1
failureThreshold: 3
readinessProbe:
exec:
command:
- sh
- -c
- "redis-cli ping"
initialDelaySeconds: 5
periodSeconds: 10
timeoutSeconds: 1
successThreshold: 1
failureThreshold: 3
initContainers:
- command:
- /bin/sh
- -c
- |
ulimit -n 65536
mount -o remount rw /sys
echo never > /sys/kernel/mm/transparent_hugepage/enabled
mount -o remount rw /proc/sys
echo 2000 > /proc/sys/net/core/somaxconn
echo 1 > /proc/sys/vm/overcommit_memory
image: registry.cn-beijing.aliyuncs.com/acs/busybox:v1.29.2
imagePullPolicy: IfNotPresent
name: init-redis
resources: {}
securityContext:
privileged: true
procMount: Default
交付k8s
kubectl apply -f postgres.yaml -n gitlab
kubectl apply -f redis.yaml -n gitlab
2.4 配置gitlab
# pv
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: gitlab-etc
labels:
type: gitlab-etc
spec:
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
storageClassName: nfs
nfs:
path: /data/gitlab_etc
server: 10.46.8.18
# pvc
---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: gitlab-etc-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: nfs
selector:
matchLabels:
type: gitlab-etc
# pv
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: gitlab-log
labels:
type: gitlab-log
spec:
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
storageClassName: nfs
nfs:
path: /data/gitlab_log
server: 10.46.8.18
# pvc
---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: gitlab-log-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: nfs
selector:
matchLabels:
type: gitlab-log
# pv
---
apiVersion: v1
kind: PersistentVolume
metadata:
name: gitlab-opt
labels:
type: gitlab-opt
spec:
capacity:
storage: 1Gi
accessModes:
- ReadWriteOnce
persistentVolumeReclaimPolicy: Retain
storageClassName: nfs
nfs:
path: /data/gitlab_opt
server: 10.46.8.18
# pvc
---
kind: PersistentVolumeClaim
apiVersion: v1
metadata:
name: gitlab-opt-pvc
spec:
accessModes:
- ReadWriteOnce
resources:
requests:
storage: 1Gi
storageClassName: nfs
selector:
matchLabels:
type: gitlab-opt
---
apiVersion: v1
kind: Service
metadata:
name: gitlab
labels:
app: gitlab
tier: frontend
spec:
ports:
- name: gitlab-ui
port: 80
protocol: TCP
targetPort: 80
- name: gitlab-ssh
port: 22
protocol: TCP
targetPort: 22
selector:
app: gitlab
tier: frontend
type: NodePort
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: gitlab
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: gitlab-cb
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: gitlab
namespace: gitlab
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: gitlab
labels:
app: gitlab
tier: frontend
spec:
replicas: 1
selector:
matchLabels:
app: gitlab
tier: frontend
strategy:
type: Recreate
template:
metadata:
labels:
app: gitlab
tier: frontend
spec:
serviceAccountName: gitlab
containers:
- image: harbor.huhuhahei.cn/huhuhahei/gitlab-ce:13.8.6-ce.0
name: gitlab
resources:
requests:
cpu: 400m
memory: 2200Mi
limits:
cpu: 2000m
memory: 2800Mi
securityContext:
privileged: true
env:
- name: TZ
value: Asia/Shanghai
- name: GITLAB_OMNIBUS_CONFIG
value: |
postgresql['enable'] = false
gitlab_rails['db_username'] = "gitlab"
gitlab_rails['db_password'] = "bogeusepg"
gitlab_rails['db_host'] = "postgresql"
gitlab_rails['db_port'] = "5432"
gitlab_rails['db_database'] = "gitlabhq_production"
gitlab_rails['db_adapter'] = 'postgresql'
gitlab_rails['db_encoding'] = 'utf8'
redis['enable'] = false
gitlab_rails['redis_host'] = 'redis'
gitlab_rails['redis_port'] = '6379'
gitlab_rails['redis_password'] = 'bogeuseredis'
gitlab_rails['gitlab_shell_ssh_port'] = 22
external_url 'http://git.huhuhahei.cn/'
nginx['listen_port'] = 80
nginx['listen_https'] = false
#-------------------------------------------
gitlab_rails['gitlab_email_enabled'] = true
gitlab_rails['gitlab_email_from'] = 'admin@huhuhahei.cn'
gitlab_rails['gitlab_email_display_name'] = 'huhuhahei'
gitlab_rails['gitlab_email_reply_to'] = 'gitlab@boge.com'
gitlab_rails['gitlab_default_can_create_group'] = true
gitlab_rails['gitlab_username_changing_enabled'] = true
gitlab_rails['smtp_enable'] = true
gitlab_rails['smtp_address'] = "smtp.exmail.qq.com"
gitlab_rails['smtp_port'] = 465
gitlab_rails['smtp_user_name'] = "gitlab@boge.com"
gitlab_rails['smtp_password'] = "bogesendmail"
gitlab_rails['smtp_domain'] = "exmail.qq.com"
gitlab_rails['smtp_authentication'] = "login"
gitlab_rails['smtp_enable_starttls_auto'] = true
gitlab_rails['smtp_tls'] = true
#-------------------------------------------
# 关闭 promethues
prometheus['enable'] = false
# 关闭 grafana
grafana['enable'] = false
# 减少内存占用
unicorn['worker_memory_limit_min'] = "200 * 1 << 20"
unicorn['worker_memory_limit_max'] = "300 * 1 << 20"
# 减少 sidekiq 的并发数
sidekiq['concurrency'] = 16
# 减少 postgresql 数据库缓存
postgresql['shared_buffers'] = "256MB"
# 减少 postgresql 数据库并发数量
postgresql['max_connections'] = 8
# 减少进程数 worker=CPU核数+1
unicorn['worker_processes'] = 2
nginx['worker_processes'] = 2
puma['worker_processes'] = 2
# puma['per_worker_max_memory_mb'] = 850
# 保留3天备份的数据文件
gitlab_rails['backup_keep_time'] = 259200
#-------------------------------------------
ports:
- containerPort: 80
name: gitlab
livenessProbe:
exec:
command:
- sh
- -c
- "curl -s http://127.0.0.1/-/health|grep -w 'GitLab OK'"
initialDelaySeconds: 120
periodSeconds: 10
timeoutSeconds: 5
successThreshold: 1
failureThreshold: 3
readinessProbe:
exec:
command:
- sh
- -c
- "curl -s http://127.0.0.1/-/health|grep -w 'GitLab OK'"
initialDelaySeconds: 120
periodSeconds: 10
timeoutSeconds: 5
successThreshold: 1
failureThreshold: 3
volumeMounts:
- mountPath: /etc/gitlab
name: gitlab1
- mountPath: /var/log/gitlab
name: gitlab2
- mountPath: /var/opt/gitlab
name: gitlab3
- mountPath: /etc/localtime
name: tz-config
volumes:
- name: gitlab1
persistentVolumeClaim:
claimName: gitlab-etc-pvc
- name: gitlab2
persistentVolumeClaim:
claimName: gitlab-log-pvc
- name: gitlab3
persistentVolumeClaim:
claimName: gitlab-opt-pvc
- name: tz-config
hostPath:
path: /usr/share/zoneinfo/Asia/Shanghai
securityContext:
runAsUser: 0
fsGroup: 0
ingress 配置
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
name: gitlab
# annotations:
# nginx.ingress.kubernetes.io/force-ssl-redirect: "false"
# nginx.ingress.kubernetes.io/proxy-body-size: "20m"
spec:
rules:
- host: git.huhuhahei.cn
http:
paths:
- path: /
pathType: Prefix
backend:
service:
name: gitlab
port:
number: 80
交付k8s
kubectl apply -f gitlab_ingress.yaml -n gitlab
kubectl apply -f gitlab.yaml -n gitlab

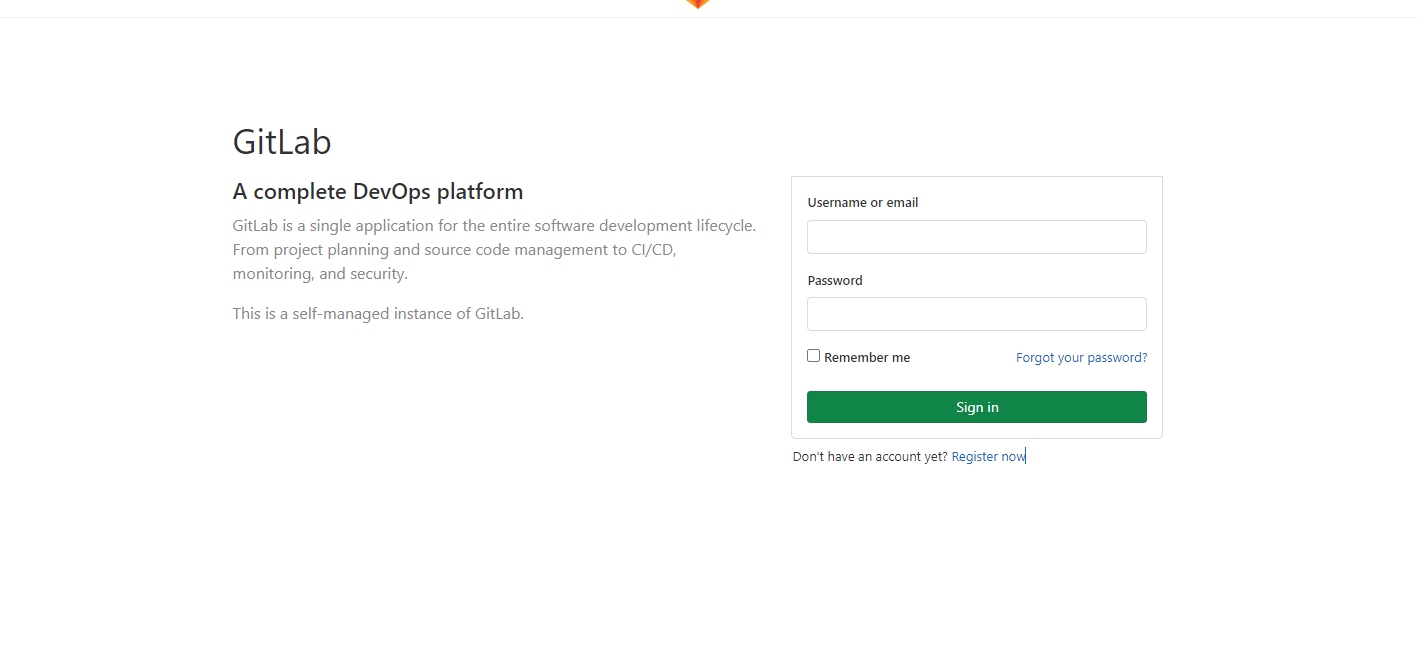

2.5 访问测试
