Linux部署process_exporter监控进程情况

1.简介 process-exporter主要用来做进程监控，比如某个服务的进程数、消耗了多少CPU、内存、IO资源等

2.安装配置

wget http://github.com/ncabatoff/process-exporter/releases/download/v0.7.2/process-exporter-0.7.2.linux-amd64.tar.gz
tar -xvf process-exporter-0.7.2.linux-amd64.tar.gz  -C /usr/local/
cd /usr/local/
ln -s process-exporter-0.7.2.linux-amd64 process_exporter
cd process_exporter/
ln -s process-exporter process_exporter
mkdir logs

3.添加需要监控的进程配置（需要自己创建） 配置文件路径/usr/local/process_exporter/config.yaml

process_names:
  - name: "{{.Matches}}"
    cmdline:
    - 'elasticsearch'
  - name: "{{.Matches}}"
    cmdline:
    - 'logstash'
  - name: "{{.Matches}}"
    cmdline:
    - 'kibana'

4.启动

nohup ./process-exporter  -config.path="config.yaml"  -web.listen-address=":9256">> logs/process-exporter.log 2>&1 &

#-config.path 指定进程配置文件
#-web.listen-address 指定监听端口

5.prometheus添加对应配置

- job_name: 'process'
    static_configs:
      - targets: ['106.75.x.x:9256']

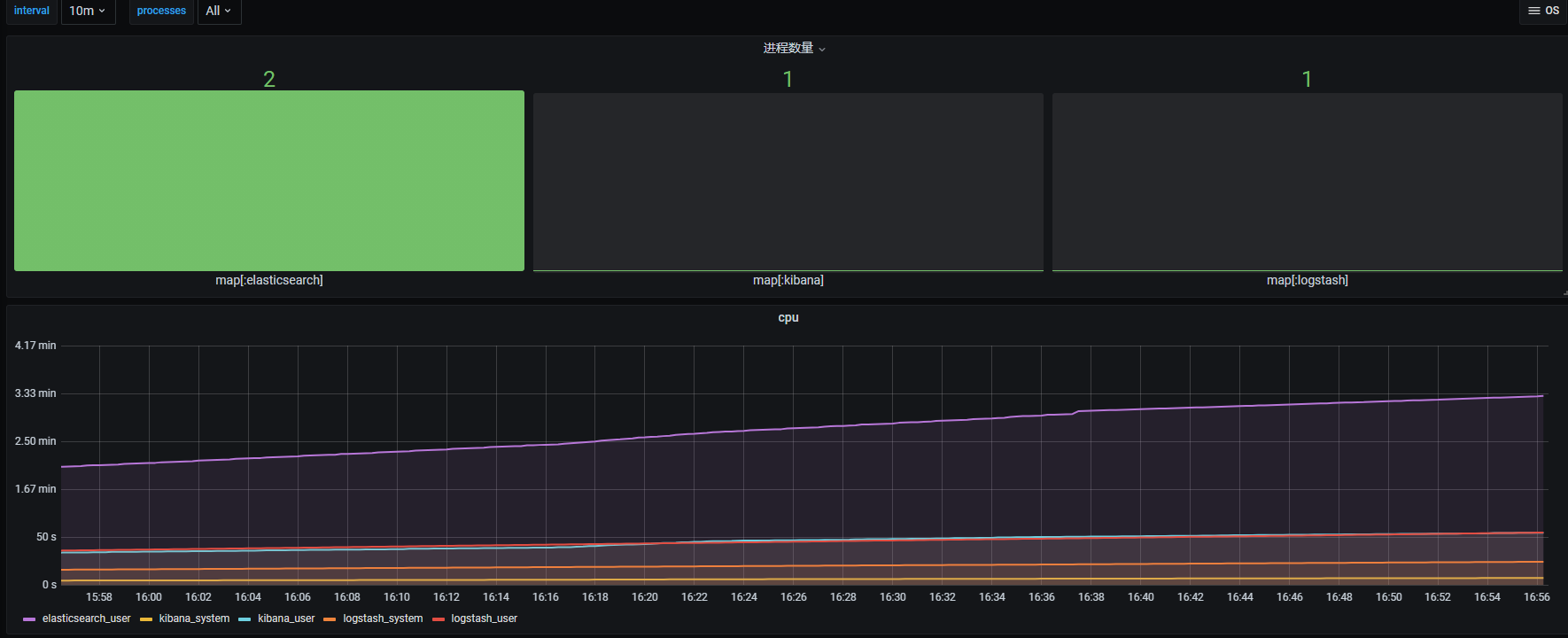

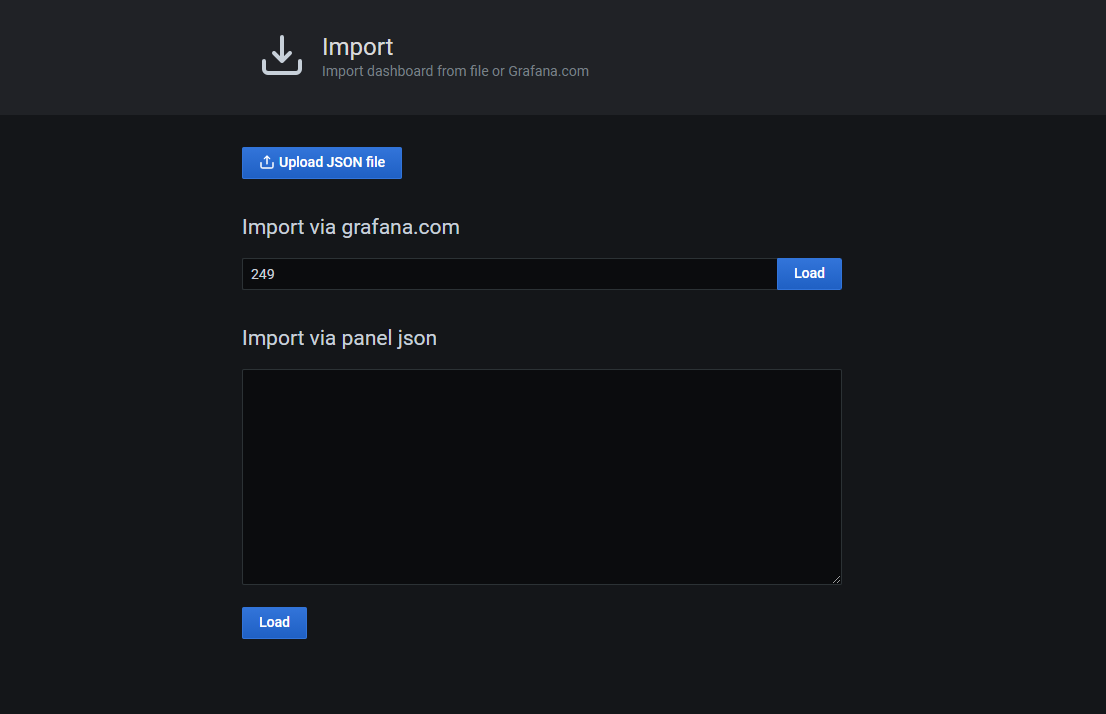

6.grafana添加对应模板 最终展示
