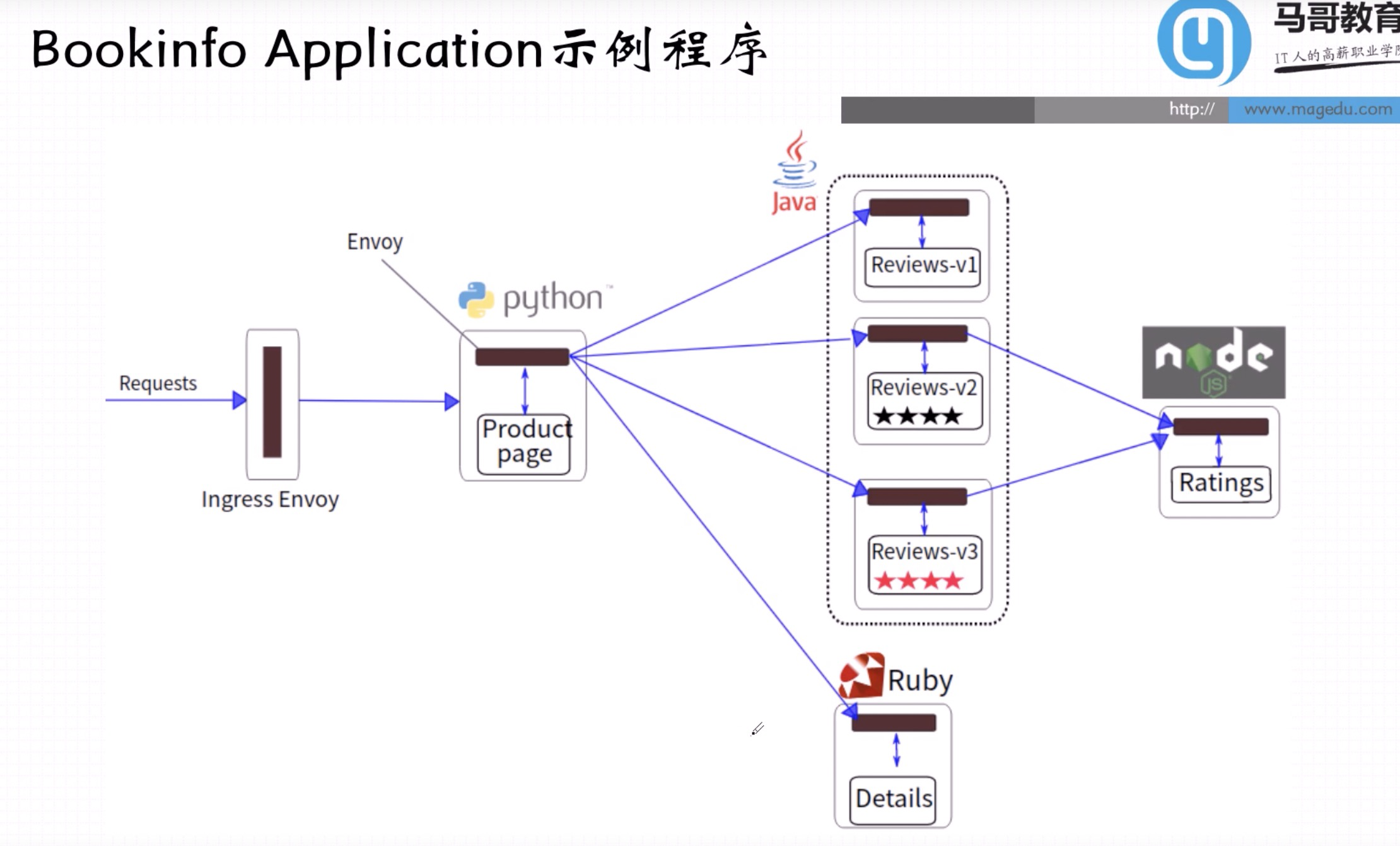

一.bookinfo架构简介

二.部署bookinfo

1.配置环境

istio可以通过多种方式注入

通过名称空间设置lable的方式自动注入

 kubectl  label namespace bookinfo istio-injection=enable

打上标签后可以通过label确认是否成功

kubectl get ns/bookinfo --show-labels
NAME       STATUS   AGE    LABELS
bookinfo   Active   9m9s   istio-injection=enable,kubesphere.io/namespace=bookinfo

手动注入

kubectl apply -f <(istioctl kube-inject -f samples/bookinfo/platform/kube/bookinfo.yaml)

2.部署bookinfo

kubectl apply -f  /usr/local/istio/samples/bookinfo/platform/kube/bookinfo.yaml -n bookinfo
service/details created
serviceaccount/bookinfo-details created
deployment.apps/details-v1 created
service/ratings created
serviceaccount/bookinfo-ratings created
deployment.apps/ratings-v1 created
service/reviews created
serviceaccount/bookinfo-reviews created
deployment.apps/reviews-v1 created
deployment.apps/reviews-v2 created
deployment.apps/reviews-v3 created
service/productpage created
serviceaccount/bookinfo-productpage created
deployment.apps/productpage-v1 created
You have mail in /var/spool/mail/root

查看pod可以发现每个pod都是两个容器了

details-v1-78d78fbddf-t9jxr                    2/2     Running            0          2m10s
productpage-v1-596598f447-245bm                2/2     Running            0          2m10s
ratings-v1-6c9dbf6b45-tdjlh                    2/2     Running            0          2m10s
reviews-v1-7bb8ffd9b6-zs8b5                    2/2     Running            0          2m10s
reviews-v2-d7d75fff8-vtw8b                     2/2     Running            0          2m10s
reviews-v3-68964bc4c8-fkljg                    2/2     Running            0          2m10s

describe可以查看到容器也是注入成功的

...
 istio-proxy:
    Container ID:  docker://8cd4c3bb24ef01f470b531f37c505fc5cd8984678229392577020e83ca047473
    Image:         docker.io/istio/proxyv2:1.4.0
    Image ID:      docker-pullable://istio/proxyv2@sha256:9ba9de87d660767a2147f786040a8fe29ebb3b335742d3c95257ab82a33b8415
    Port:          15090/TCP
    Host Port:     0/TCP
    Args:
...

至此bookinfo已经部署完成😀

三.接入Istio

1.部署bookinfo Gateway

kubectl apply -f samples/bookinfo/networking/bookinfo-gateway.yaml

yaml文件如下

apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: bookinfo-gateway
spec:
  selector:
    istio: ingressgateway # use istio default controller
  servers:
  - port:
      number: 80
      name: http
      protocol: HTTP
    hosts:
    - istio.default.bookinfo.com
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: bookinfo
spec:
  hosts:
  - istio.default.bookinfo.com
  gateways:
  - bookinfo-gateway
  http:
  - match:
    - uri:
        exact: /productpage
    - uri:
        prefix: /static
    - uri:
        exact: /login
    - uri:
        exact: /logout
    - uri:
        prefix: /api/v1/products
    route:
    - destination:
        host: productpage
        port:
          number: 9080

#查看gateway
kubectl get gateways.networking.istio.io
NAME               AGE
bookinfo-gateway   19m

#查看rv
kubectl get virtualservices.networking.istio.io
NAME       GATEWAYS             HOSTS   AGE
bookinfo   [bookinfo-gateway]   [*]     20m

部署完成通过Istis-ingressgateway访问

get svc -n istio-system | grep gateway
istio-egressgateway      ClusterIP      10.68.20.211    <none>        80/TCP,443/TCP,15443/TCP                                                                                                     22h
istio-ingressgateway     LoadBalancer   10.68.159.17    <pending>     15020:38813/TCP,80:37266/TCP,443:27530/TCP,15029:28752/TCP,15030:21822/TCP,15031:34373/TCP,15032:27310/TCP,15443:36864/TCP   22h

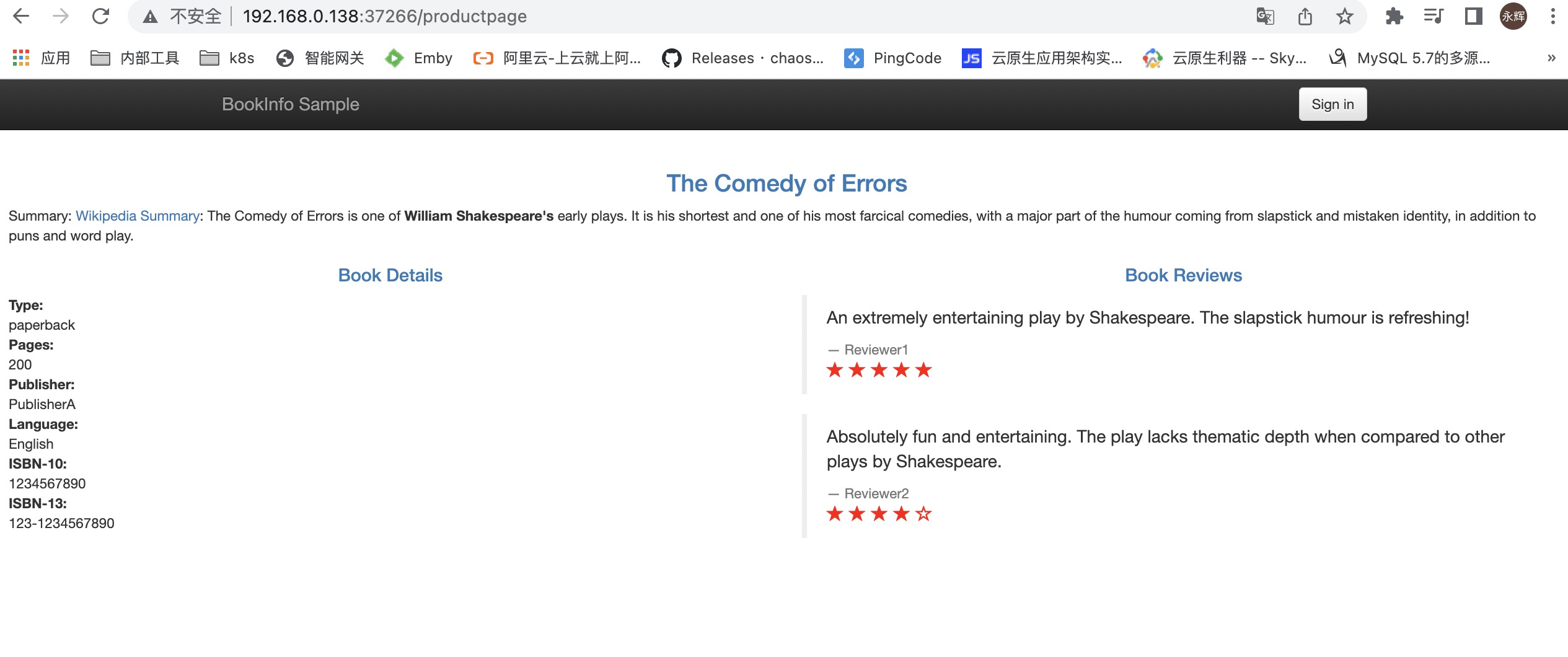

浏览器访问节点地址+NodePort端口

可以正常访问并且刷新reviews是会轮训变化的证明流量是轮训转发到reviews服务的不同版本中的

2.部署默认应用路由

kubectl apply -f samples/bookinfo/networking/destination-rule-all.yaml

yaml文件如下

apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: productpage
spec:
  host: productpage
  subsets:
  - name: v1
    labels:
      version: v1
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: reviews
spec:
  host: reviews
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2
  - name: v3
    labels:
      version: v3
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: ratings
spec:
  host: ratings
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2
  - name: v2-mysql
    labels:
      version: v2-mysql
  - name: v2-mysql-vm
    labels:
      version: v2-mysql-vm
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: details
spec:
  host: details
  subsets:
  - name: v1
    labels:
      version: v1
  - name: v2
    labels:
      version: v2
---

可以用过下面命令查看

kubectl get dr
NAME          HOST          AGE
details       details       10m
productpage   productpage   10m
ratings       ratings       10m
reviews       reviews       10m

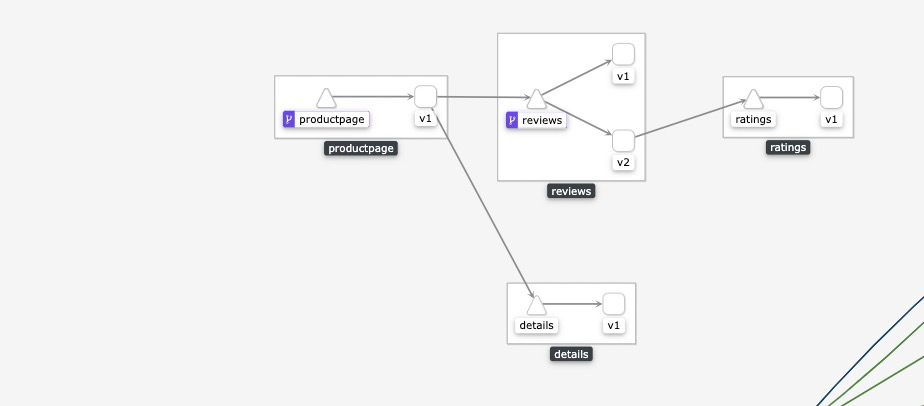

三.Kiali简介

1.配置kiali在gateway的转发

需要先创建secret

KIALI_USERNAME=$(read -p 'Kiali Username: ' uval && echo -n $uval | base64)

KIALI_PASSPHRASE=$(read -sp 'Kiali Passphrase: ' pval && echo -n $pval | base64)

cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Secret
metadata:
  name: kiali
  namespace: istio-system
  labels:
    app: kiali
type: Opaque
data:
  username: $KIALI_USERNAME
  passphrase: $KIALI_PASSPHRASE
EOF

将kiali配置到gateway上

cat <<EOF | kubectl apply -f -
apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: kiali-gateway
  namespace: istio-system
spec:
  selector:
    istio: ingressgateway
  servers:
  - port:
      number: 15029
      name: http-kiali
      protocol: HTTP
    hosts:
    - "*"
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: kiali-vs
  namespace: istio-system
spec:
  hosts:
  - "*"
  gateways:
  - kiali-gateway
  http:
  - match:
    - port: 15029
    route:
    - destination:
        host: kiali
        port:
          number: 20001
---
apiVersion: networking.istio.io/v1alpha3
kind: DestinationRule
metadata:
  name: kiali
  namespace: istio-system
spec:
  host: kiali
  trafficPolicy:
    tls:
      mode: DISABLE
---
EOF
