Prometheus监控Mysql

1.安装mysql_exporter

wget  https://github.com/prometheus/mysqld_exporter/releases/download/v0.12.1/mysqld_exporter-0.12.1.linux-amd64.tar.gz

解压

tar zxvf mysqld_exporter-0.12.1.linux-amd64.tar.gz
mv mysqld_exporter-0.12.1.linux-amd64 /usr/local/mysql_exporter
cd /usr/local/mysql_exporter

---

2.在mysql中创建exporter用户并赋予权限

CREATE USER 'exporter'@'localhost' IDENTIFIED BY '123456';
GRANT PROCESS, REPLICATION CLIENT, SELECT ON *.* TO 'exporter'@'localhost';
flush privileges;

---

3.创建配置文件

vim /usr/local/mysql_exporter/.my.cnf
[client]
user=exporter
password=000000

---

4.启动

nohup ./mysqld_exporter --config.my-cnf=.my.cnf &

---

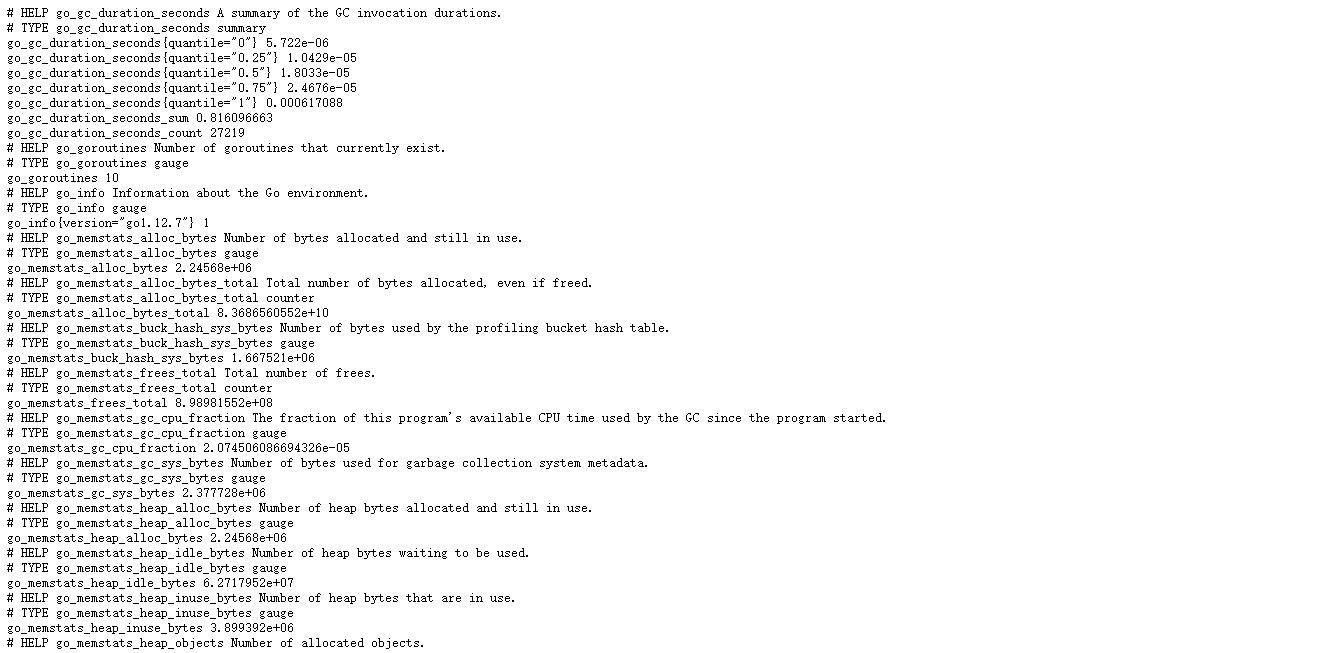

5.测试访问ip：9104

---

6.Prometheus添加节点

- job_name: 'Mysql'
    static_configs:
    - targets:
      - '10.7.110.221:9104'

---

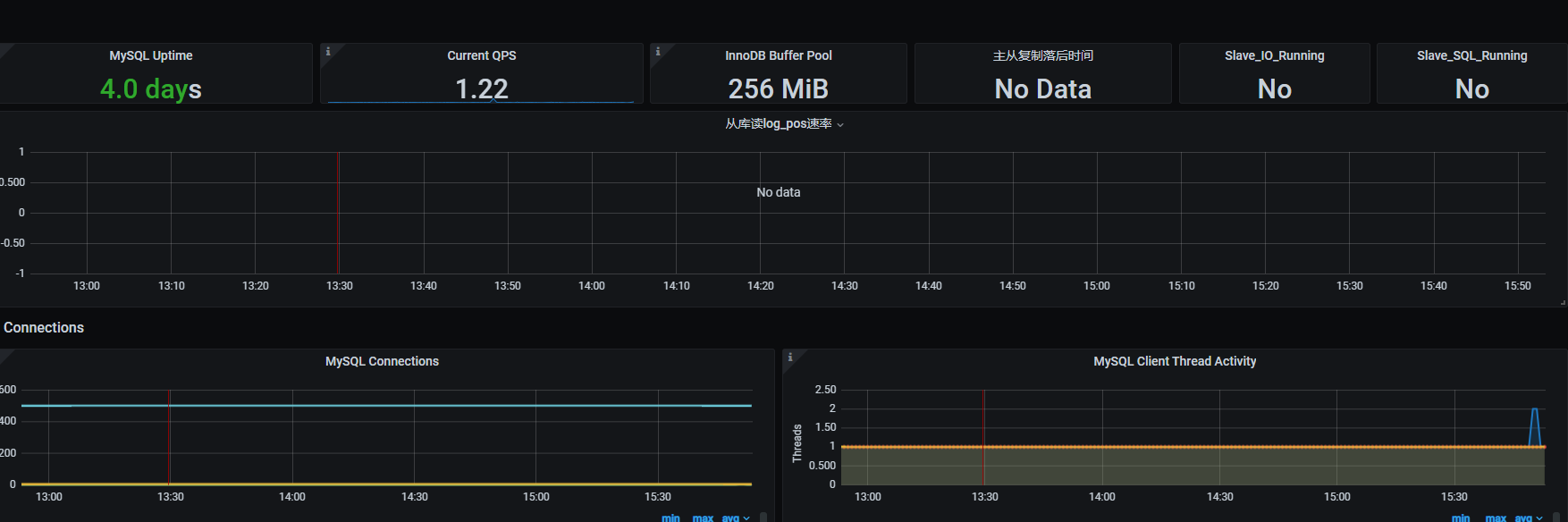

7.Grafana添加模板7362后查看监控
